Icarex series (1966-1971)

Icarex系列由Voigtländer设计
并以ZeissIkonVoigtländer品牌名称出售。
所有相机都有可互换的卡口或M42卡口镜头
和布焦平面快门1/1000，
可互换的观看屏幕和取景器，但Icarex 35S带有固定棱镜。
Rollei买了这个品牌，相机变得轻微改变VSL1，VSL2和VSL3。

The Icarex series was designed by Voigtländer
and sold with the Zeiss Ikon Voigtländer brand name.
All cameras have interchangeable bayonet or M42 mount lenses
and a cloth focal plane shutter 1/1000,
interchangeable viewing screens and viewfinders but the Icarex 35S came with a fixed prism.
Rollei bought the brand and the cameras became with slight changes the VSL1, VSL2 and VSL3.

Icarex 35 with waist level finder

Icarex 35 BM

Icarex 35 TM

Icarex 35 S

Icarex 35 S BM

Icarex 35 S TM

Icarex 35 CS

Icarex 35 CS

Icarex 35 CS PRO

Icarex 35

1966 – 24×36 Film
Cloth focal plane shutter 1/1000.
Bayonet mount lens Carl Zeiss Tessar 2.8/50mm (with its original front cap).
Waist level finder with a folding magnifier.
Can be replaced by prism viewfinders with or without meter.
布料焦平面快门1/1000。
卡口蔡司Tessar 2.8 / 50mm卡口镜头（带原装前盖）。
带折叠放大镜的腰部水平仪。
可以用带或不带仪表的棱镜取景器代替。

Icarex 35 with open waist level finder.

Icarex 35 BM

1969 – 24×36 Film
Cloth focal plane shutter 1/1000.
Bayonet mount lens Carl Zeiss Tessar 2.8/50mm.
Interchangeable viewing screen and viewfinder. No light meter.

Icarex 35 TM

1969 – 24×36 Film
Cloth focal plane shutter 1/1000.
M42 thread mount lens Carl Zeiss Tessar 2.8/50mm.
Interchangeable viewing screen and viewfinder. No light meter.

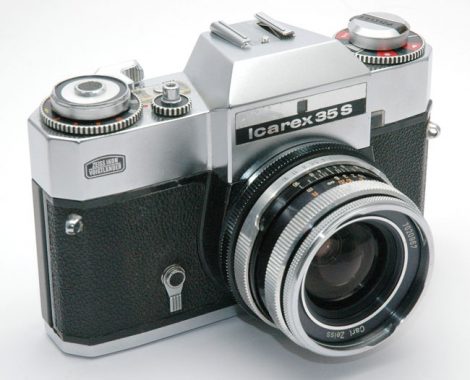

Icarex 35 S

1968 – 24×36 Film
Cloth focal plane shutter 1/1000.
Bayonet mount lens Carl Zeiss Skoparex 3.4/35mm.
Fixed prism. CdS TTL metering.

Icarex 35 S BM

1969 – 24×36 Film
Cloth focal plane shutter 1/1000.
Bayonet mount lens Carl Zeiss Super-Dynarex 4/135 mm.
Fixed prism. CdS TTL metering.

Icarex 35 S TM

1969 – 24×36 Film
Cloth focal plane shutter 1/1000.
Thread mount lens Carl Zeiss Tessar 2,8/50 mm.
Fixed prism. CdS TTL metering.

Icarex 35 CS

1968 – 24×36 Film
Cloth focal plane shutter 1/1000.
Bayonet mount lens Carl Zeiss Tessar 2.8/50mm.
Interchangeable viewing screen and viewfinder. CdS TTL metering.

Icarex 35 CS

1970 – 24×36 Film
Cloth focal plane shutter 1/1000.
Bayonet mount lens Zeiss Ikon Color-Pantar 2.8/50mm.
Interchangeable viewing screen and viewfinder(different disk from 1968 model).
CdS TTL metering.

Icarex 35 CS PRO

1968 – 24×36 Film
Cloth focal plane shutter 1/1000.
Bayonet mount lens Carl Zeiss Tessar 2.8/50 mm.
Interchangeable viewing screen and viewfinder(different disk from 1968 model).
CdS TTL metering.
Black camera with “PRO” engraved on the left of the body.
No difference from the CS “normal” model.
